Place of Origin: | China |
Brand Name: | QM Medical |
Certification: | CE |
Model Number: | QM-130+ |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 4000/Set |
Packaging Details: | aluminum box |
Delivery Time: | 3-7 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 200 sets per month |

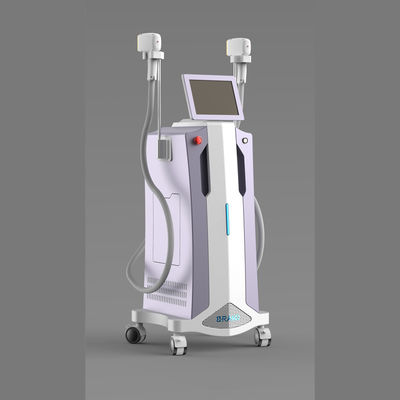

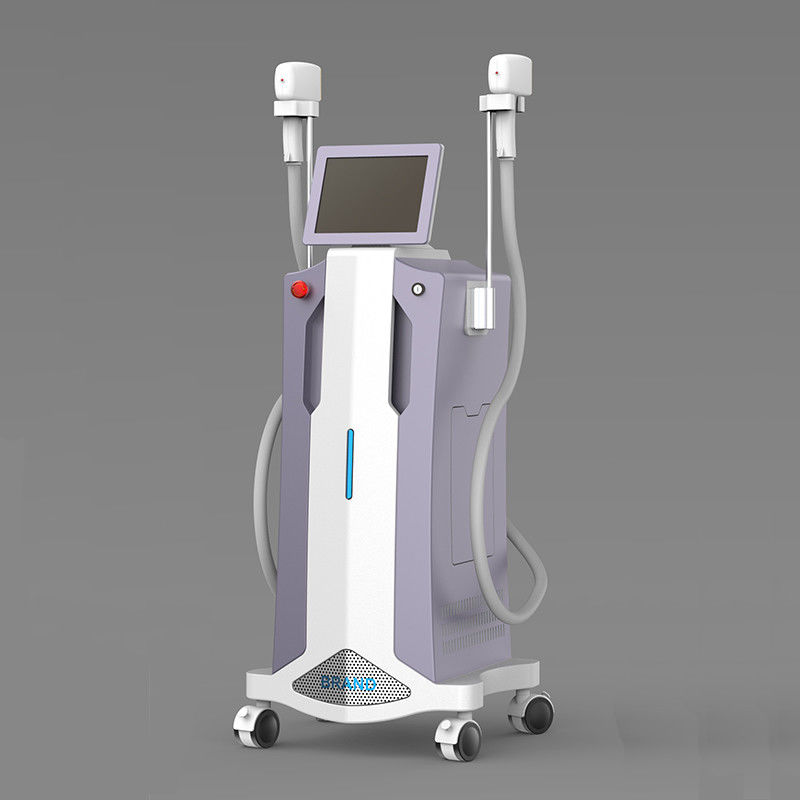

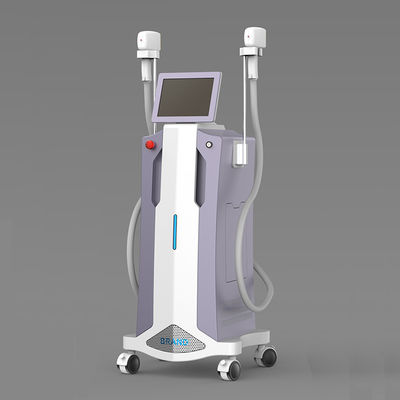

QM-130(+) 808nm+IPL
Applications
For any unwanted hairs on areas of face, arms, armpits, chest, back, bikini, legs and etc.
(including light, blond and thin hairs)
Working Principle
Diode laser
Diode laser hair removal technology is based on the selective dynamics of light and heat. The laser goes through the skin surface to reach the root of hair follicles; light can be absorbed and converted into heat damaged hair follicle tissue, so that hair loss regeneration without injury surrounding tissue. Slight pain, easy operation, the most safe, technology for permanent hair removal now.
It is performed using gold standard 808nm diode laser technology, with energy penetrates deep into the dermis with high average power and a rapid 10 pulse-per-second repetition rate to heat the hair shaft and hair follicle, rather than destroy the oxygen organization around hair follicle.
Meanwhile, contacting surface cooling technology applied on the Sapphire Dual-Chill Tip can eliminate the heat effect attributed to optical energy, greatly improving both the treatment performance and safety.
IPL
Intense Pulse Light(“IPL”) used broad spectrum of white light and with filters to marrow the spectrum to target specfic chromophores and structures. IPL is a non-invasive skin treatment that emits powerful bursts of light energy to treat unwanted hair, sun damaged skin, and wrinkles, etc. without damaging the surface of your skin, IPL systems use flash xenon lamps to emit micro pulses of light across a broad band of visible wavelengths. IPL work by using particular wavelengths of light that is called by melanin which colors the hair and brown skin and black. Since melanin absorbs light to be warm or hot, that the production of cells called melanocytes and melanin are denatured more produce more melanin. By using gentle pulses of light momentarily to create heat, IPL can permanently disable hair follicles, preventing hair follicles` future growth. The melanin in the hair (which gives it its colour) absorbs the light, which is then converted into heat. This heat is transferred to the growth cells surrounding the root of the hair, disabling them. By the IPL, pigments are Shattered and eliminated out of body via metabolism. At the same time,IPL also helps increase collagen production, which rejuvenates the skin leading to a more youthful, radiant, bright and few fine wrinkle skin. The light with long wavelength can pass through epidermis to the hair follicles deep underneath the skin. At the targeted area, IPL occurs heating to destroy follicles and hair structures leading to permanent hair removal.
Specialty of QM-130+:
** Different spot size handles for your option:
** Handpiece Specification:
**Super 1 Million Shots, UK Lamp
Technical Specifications:
Laser Type | Diode Laser | IPL |
Laser Stacks Power | 600W(800W for your option) | / |
Wavelength (Spectrum) | 808nm/Triple-wavelength-755nm+808nm+1064nm | 640-1200nm,530-1200nm,560-1200nm,490-1200nm |
Energy Density (Fluence) | 1-100J/cm2 (Continuously adjustable) | 1-50J/cm2 |
Spot Size | 12*20mm2(standard),12*35mm2(for option) | IPL 10mm×50mm / SHR 8mm×40mm |
Pulse Repetition Rate | 1-10Hz | |
Pulse Duration | 10-300ms | 1-12ms |
Pulses | Single | / |
Cooling |
• Continuous Sapphire contact cooling(-5℃~1℃) • Closed water circulation cooling • TEC Semi-conductor cooling |
|
Stand-by Working | Continuously for 20 hours | |
Display | 10.4" True Color LCD Touch Screen | |
Electrical Requirements | 110/230VAC, 15/20A max., 50/60Hz | |
Net Weight | 55kgs | |
Dimensions (WxDxH) | 400*450*1000 mm |
